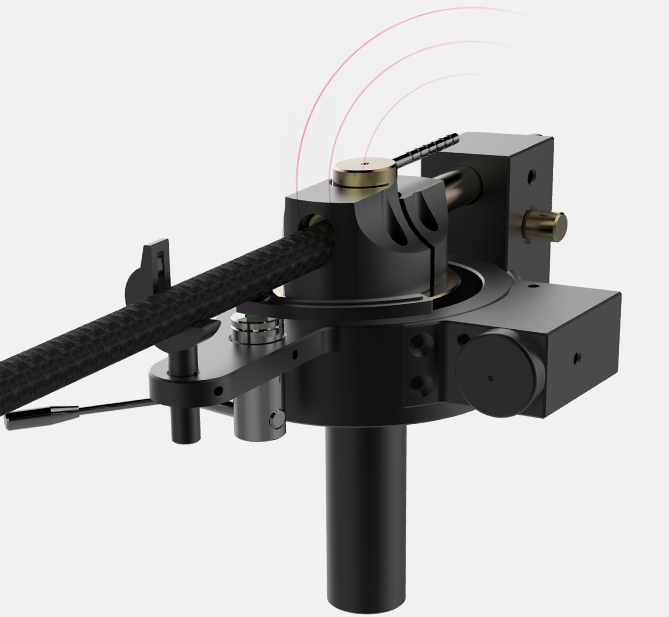

Carbon wand，Absorbing resonance couple structure

The carbon fiber has the characters of low mass and excellent rigidity, fiber structure is benefited for anti-resonance , It is the idea material to make the tonearm.

Effective oil damping design

The large damping oil cup guarantee tonearm to keep steady movement, JS-TA297 can supply the fresh, vivid sound, with excellent dynamic and bass performance.

Minimum tracking distortion

The large damping oil cup guarantee tonearm to keep steady movement, JS-TA297 can supply the fresh, vivid sound, with excellent dynamic and bass performance.

Reasonable Anti-Skating and counterweight control

The large damping oil cup guarantee tonearm to keep steady movement, JS-TA297 can supply the fresh, vivid sound, with excellent dynamic and bass performance.

Specification

Effective length

309mm

Tracking Distortion

<=0.5%

Total weight

585 g

Pivot to Spindle Distance

297mm

Null points

61.60mm/118.06mm

Packing Size

470*185*180mm

Overhang

12mm

Cartridge weight

min. 5g, max. 17g

Packing Weight

2.5 Kg

Offset angle

16.9 degree

Effective mass

13 g
